MS9129 USB 2.0 MIPI Display IC
The MS9129 is a USB 2.0 display IC integrating a USB 2.0 Device controller, data transmit/receive circuitry, and audio/video processing modules. It displays or extends content from PCs, smartphones, and tablets onto a MIPI panel through USB 2.0.
The video output complies with DSI-2, supports 1-port / 2-port MIPI output, and provides a maximum output resolution of 1920×1080p at 60 Hz.
Key Specifications
| Item | Specification |
|---|---|
| USB interface | USB 2.0 Device |
| Video output | MIPI, compliant with DSI-2 |
| MIPI ports | 1-port / 2-port support; one clock lane and four data lanes per port |
| Maximum output resolution | 1920×1080p at 60 Hz |
| Lane rate | 1.5 Gbps per lane |
| Additional MIPI features | TE signal detection and data lane swapping |
| Audio output | Three I²S outputs |
| Default USB audio format | 48 kHz / 16-bit stereo |
| Supported operating systems | Windows 7/8/10/11, Android 5.1 or later, macOS 10.15 or later, Linux |
| Clock | External 24 MHz passive crystal; built-in PLL |
| Reset | Built-in power-on reset circuit |
| Package | Molded QFN-76, 9 mm × 9 mm |
| Environmental / moisture rating | RoHS compliant; MSL3 |
| Development | Custom software development supported |
Features
MIPI TX
- Supports 1-port / 2-port output, with one clock lane and four data lanes per port.
- Supports TE signal detection.
- Maximum output resolution of 1920×1080p at 60 Hz.
- Supports 1.5 Gbps per lane.
- Supports data lane swapping.
- Complies with DSI-2.
Audio
- Three I²S outputs.
- Default USB audio output: 48 kHz / 16-bit stereo.
USB 2.0 and Software Development
- Built-in USB 2.0 Device.
- Integrated USB audio/video processing modules.
- Supports custom software development.
Operating System Support
- Windows 7 / 8 / 10 / 11.
- Android 5.1 or later.
- macOS 10.15 or later.
- Linux.
Operating system support does not imply driver-free operation on every platform. Confirm the required drivers, applications, and system integration for the project.
Clock, Reset, and Package
- External 24 MHz passive crystal and built-in PLL circuit.
- Built-in power-on reset circuit.
- Molded QFN-76 package, 9 mm × 9 mm.
- RoHS compliant; moisture sensitivity level MSL3.

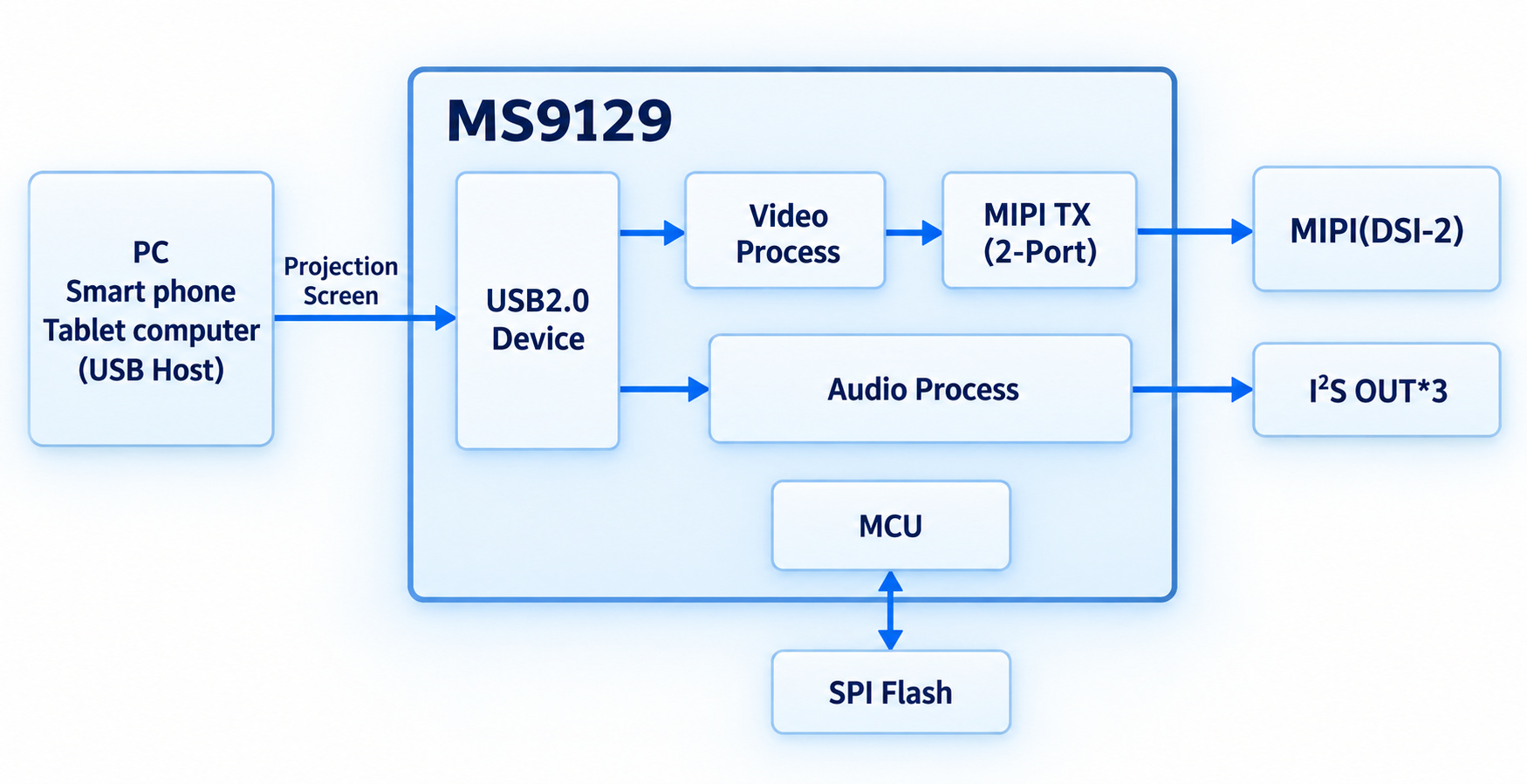

Block Diagram
Redrawn from the supplied reference, preserving the original MIPI(DSI-2), MIPI TX (2-Port), and I²S OUT*3 labels. Confirm interface operating modes and feature combinations against the datasheet and project validation.
Typical Applications
- USB external MIPI display adapters
- USB expansion devices
- Embedded MIPI panels and industrial display modules
- USB display extension to MIPI TFT-LCD designs
- MS9129 5.5-inch desktop display reference design
Sample Evaluation and Development
For sample evaluation or a new project, email doc@ultrasemi.com with your target panel, host operating system, audio requirements, and test plan to discuss integration.
Related Pages
Notes
This page summarizes the supplied MS9129 product information. The stated 1920×1080p at 60 Hz maximum does not establish that each MIPI port can independently deliver that mode simultaneously. Confirm port combinations, panel timing, drivers, and production configuration against the complete datasheet and project validation.
