MS9129 5.5-inch Desktop Display Solution
A desktop secondary-display reference design based on MS9129 (MacroSilicon USB 2.0 → MIPI). The unit uses a 5.5-inch 720 × 1080 panel as a USB information / monitor screen, mountable in portrait or landscape. It can also work as a standard USB Display, with Windows, macOS, and Android support. Host-side Python themes render HUD-style system telemetry for desk status, gaming peripherals, and lightweight dashboards.
Materials, purchase, and support
IC details: MS9129 / USB Display series. Driver and client install: USB Display drivers. Sample purchase, open-source repos, and design files are listed in the placeholders below.
1. Specifications
| Item | Detail |
|---|---|
| Core IC | MS9129 (USB 2.0 Device → MIPI) |
| Panel size | 5.5 inch |
| Resolution | 720 × 1080 (native portrait; landscape via theme / rotation) |
| Host link | Dual USB-C; auto-detects the connected port for portrait or landscape placement |
| OS support | Windows, macOS, Android (USB Display) |
| Software | Python HUD themes; USB Display HUD host app (themes / photo slideshow) |
| Hardware open source | KiCad schematic / PCB (download placeholder) |
2. Hardware and PCB

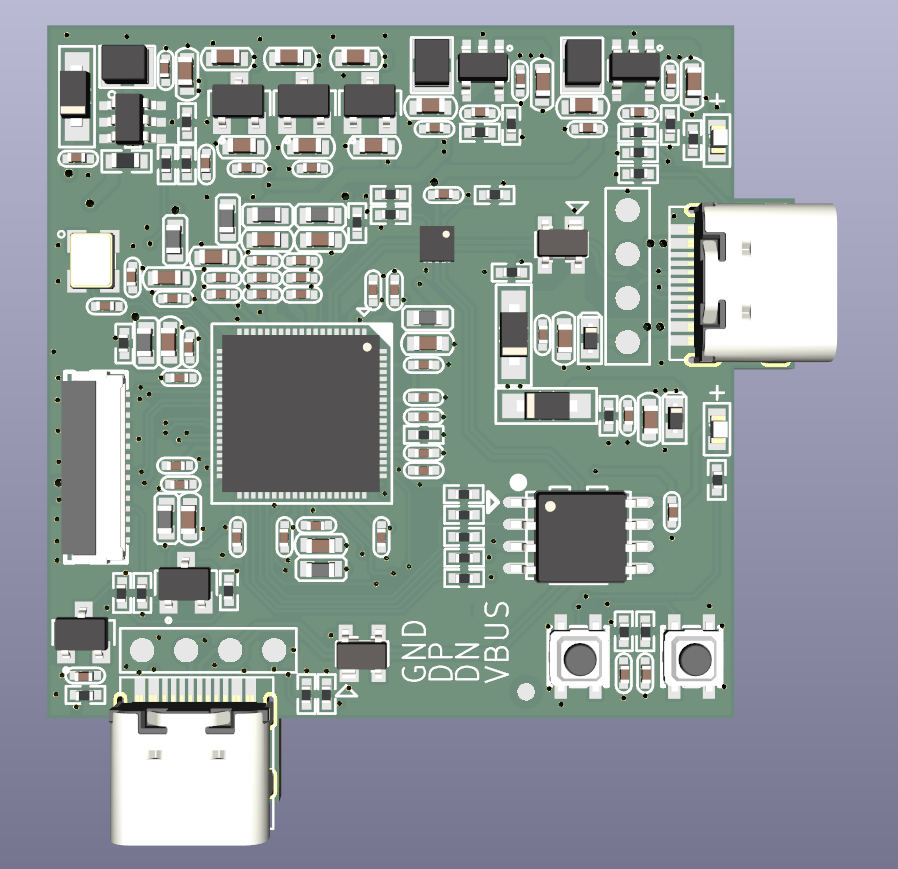

The board carries MS9129 plus power, Flash, buttons, and USB-C; the panel connects over FPC to MIPI. Dual USB-C eases power/data and mechanical routing.
Design files (KiCad)
Schematic and PCB are KiCad projects. Download slots are reserved and will be filled when files are published:
| Asset | Status |
|---|---|
Schematic (.kicad_sch) | To be added |
PCB (.kicad_pcb) | To be added |
| Project archive / repo | To be added |

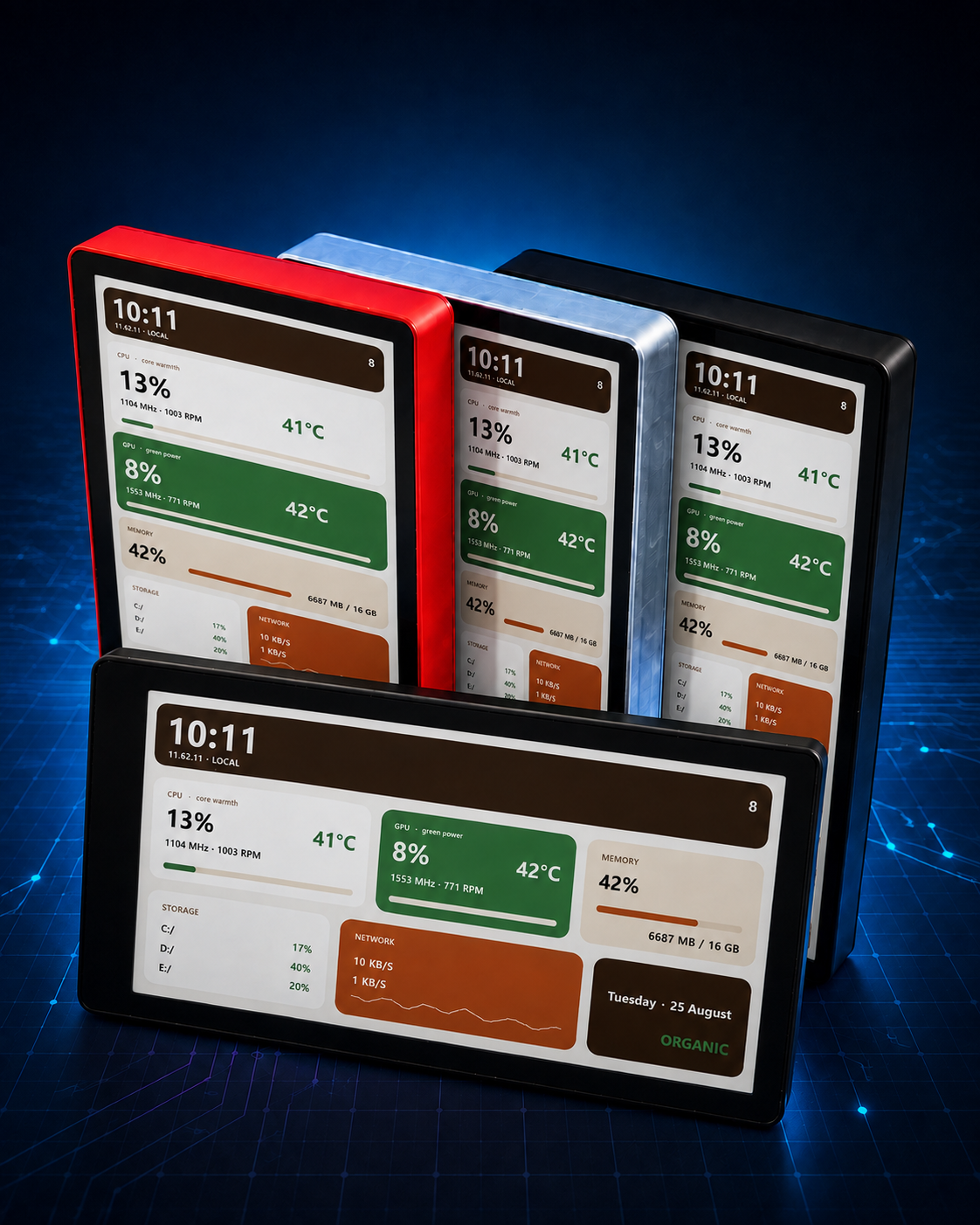

3. Demo Units
The same 5.5-inch panel fits portrait and landscape shells for upright or sideways desk placement.

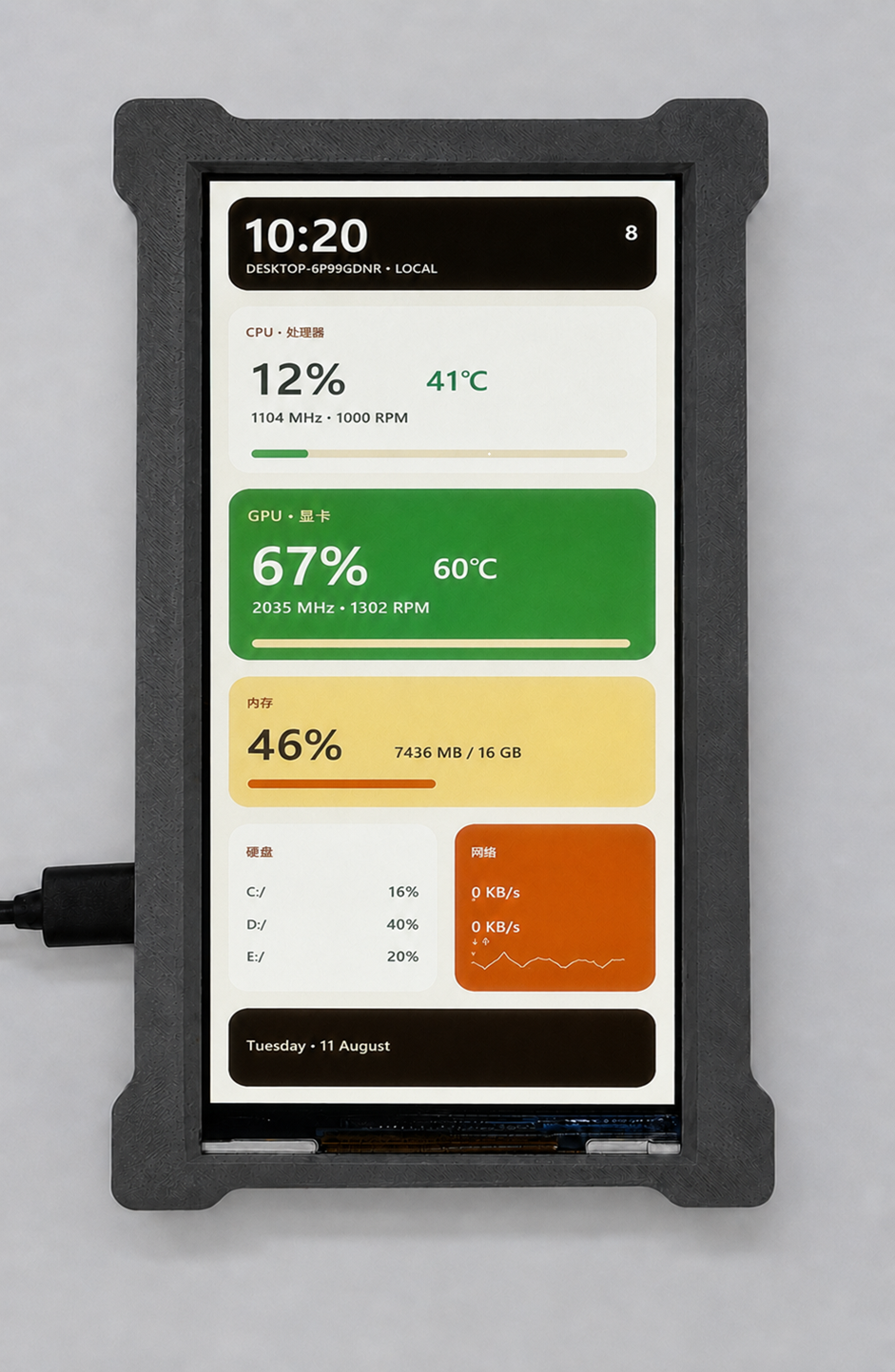

Portrait demo

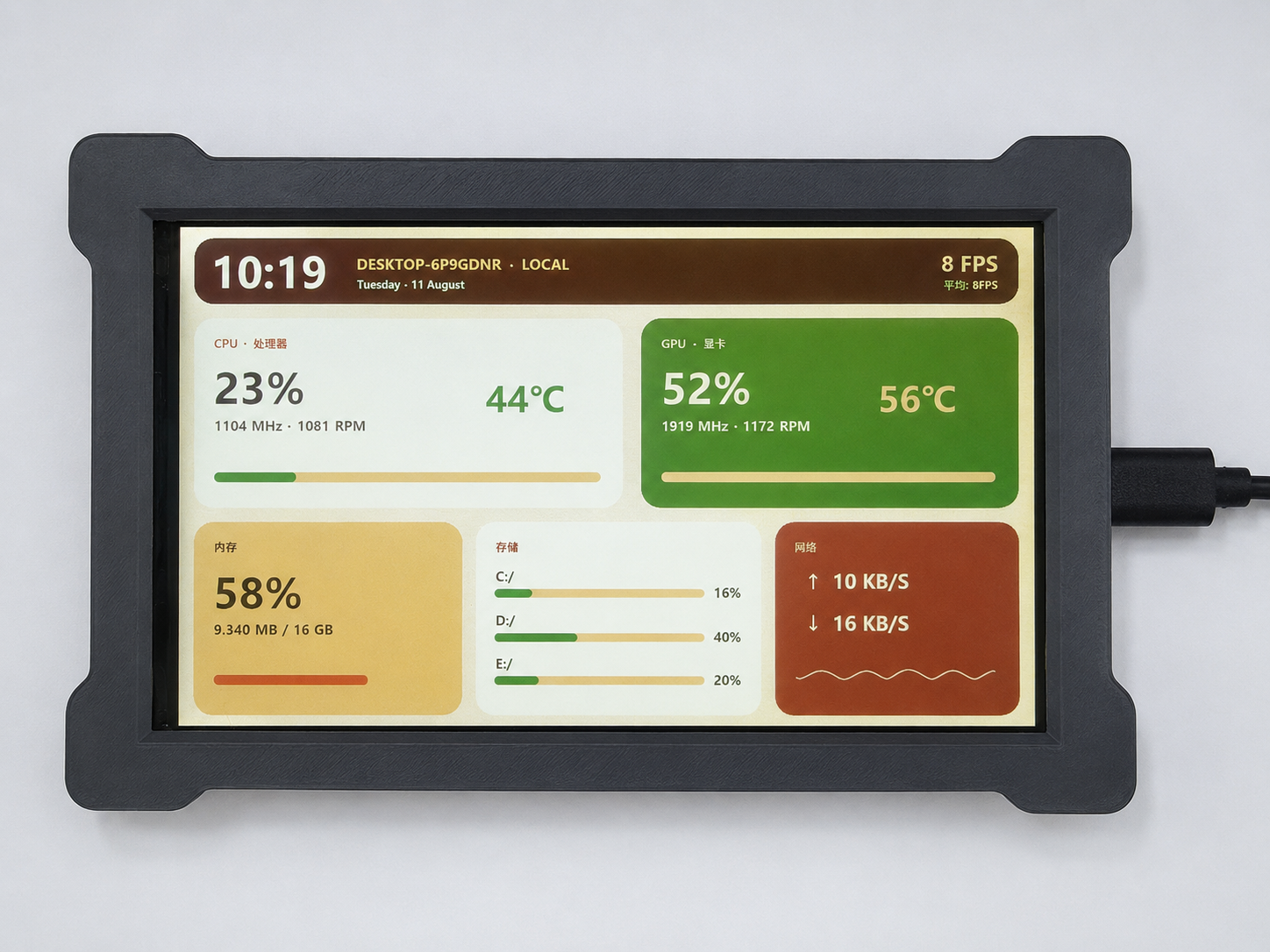

Landscape demo
4. Host App and USB Display
This design can be used as a USB Display secondary screen. Host platforms: Windows, macOS, and Android. Install the matching driver / client first — packages and steps: USB Display drivers.
One option is to run the USB Display HUD host app for style-template selection, placement orientation (0° / 90° / 180° / 270°), live preview, start-on-boot, and modes such as photo slideshow.

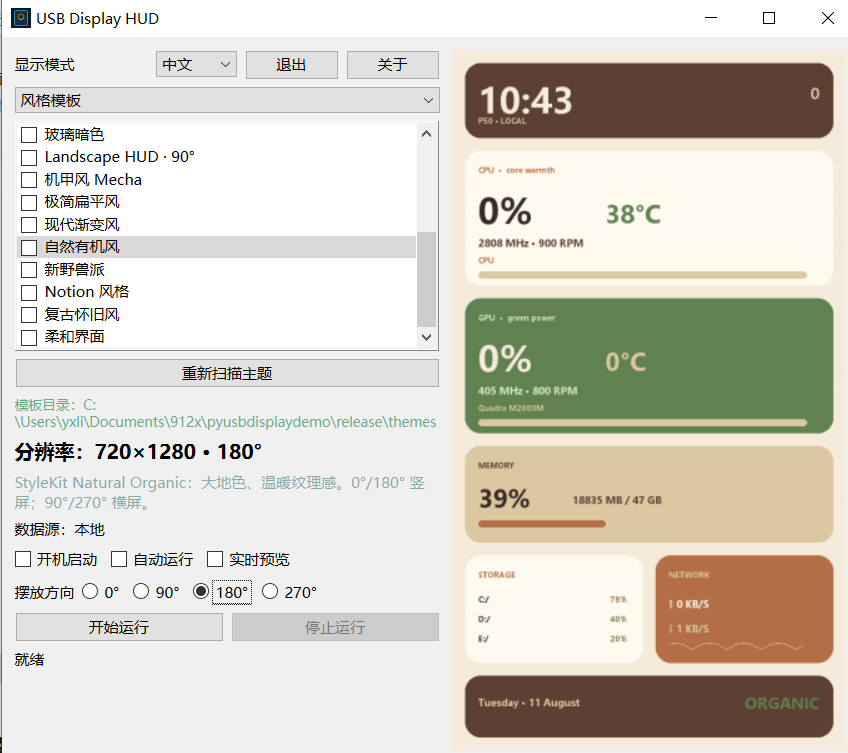

Portrait theme mode
Theme list plus portrait live preview (example: Natural Organic).

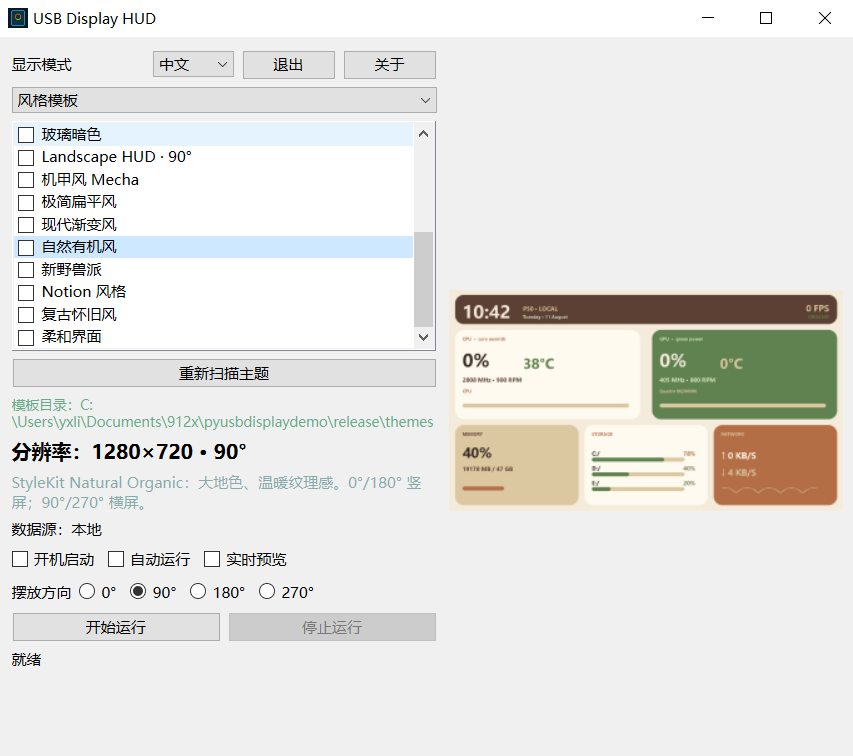

Landscape theme mode
Same theme previewed for 90° / 270° landscape placement with orientation controls.

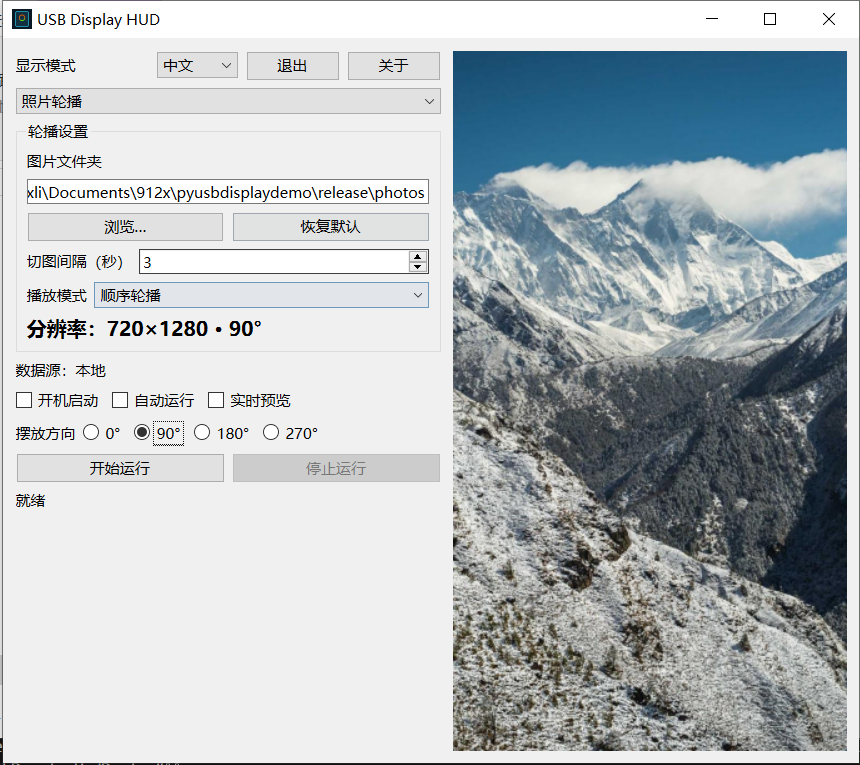

Photo slideshow mode
Pick an image folder, interval, and playback mode; the right pane shows the slideshow preview.
Source repository (placeholder)
- Host app source:
(link to be added)
5. Python Theme Previews
Themes are implemented in Python, covering system-monitor HUD layouts (CPU / GPU / memory / network / clock, etc.). Portrait and landscape summary previews:

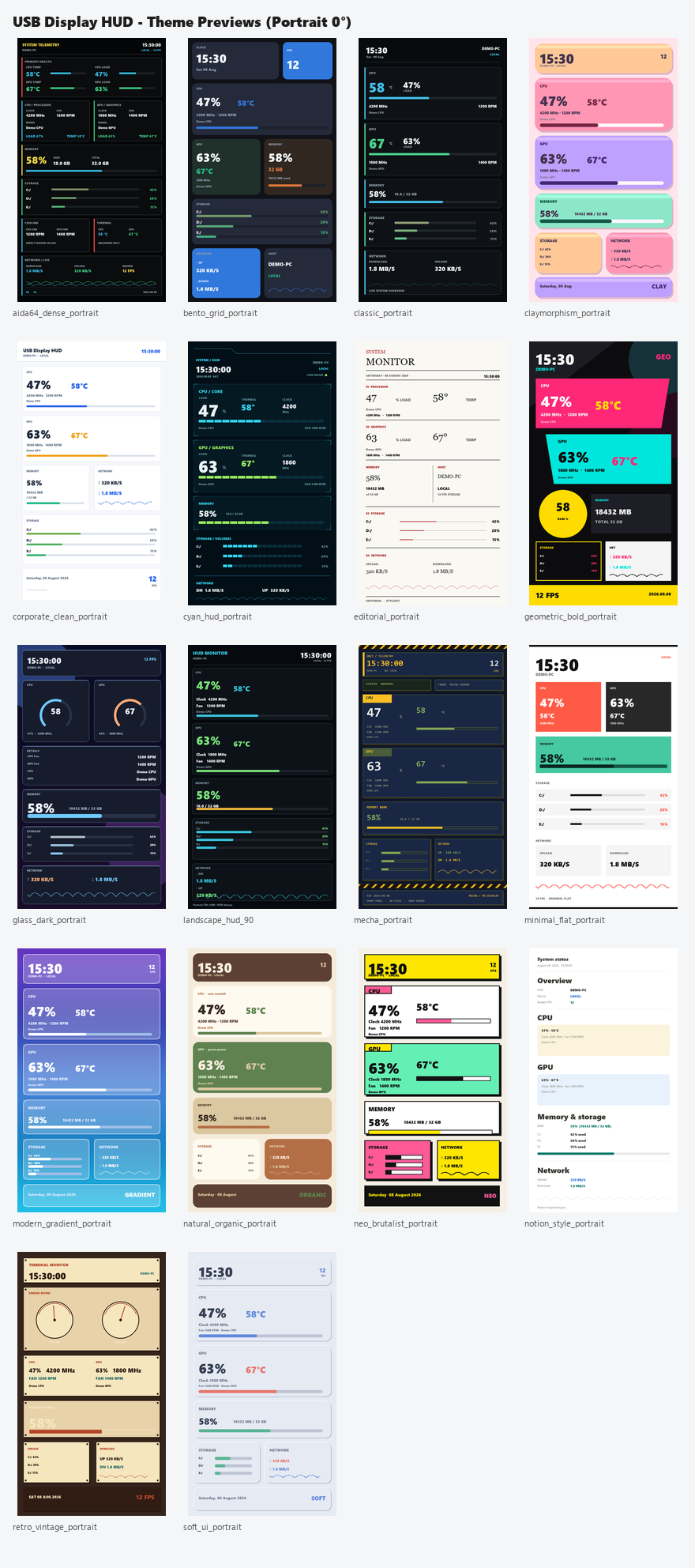

Portrait theme overview

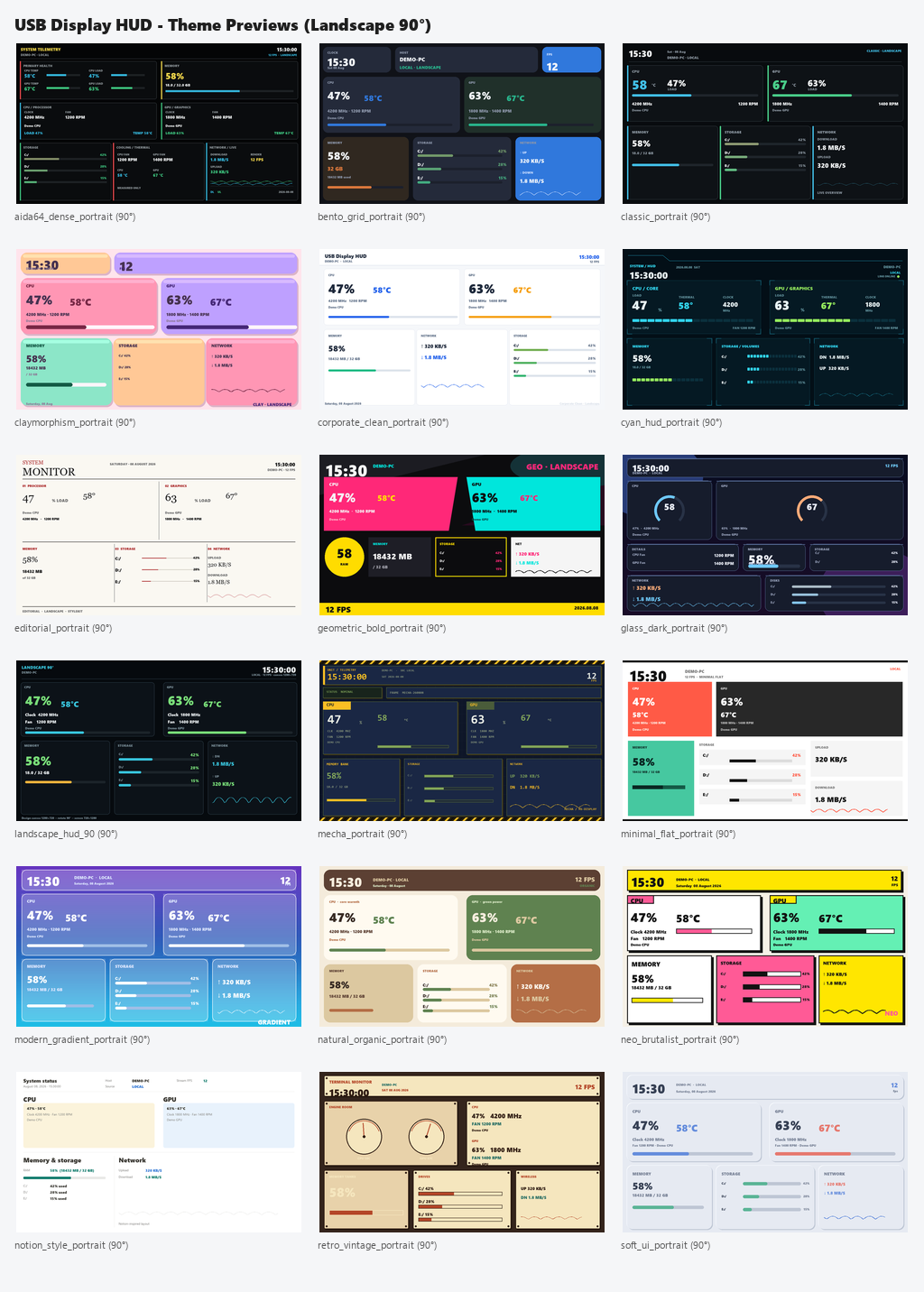

Landscape theme overview
Theme repository (placeholder)
Theme source and assets will be open-sourced; replace when published:
- Theme repository:
(link to be added)
